Coconut Oil Press Machine
- Capacity: 100kg/h--1tph
- Raw material: Coconut
Introduction

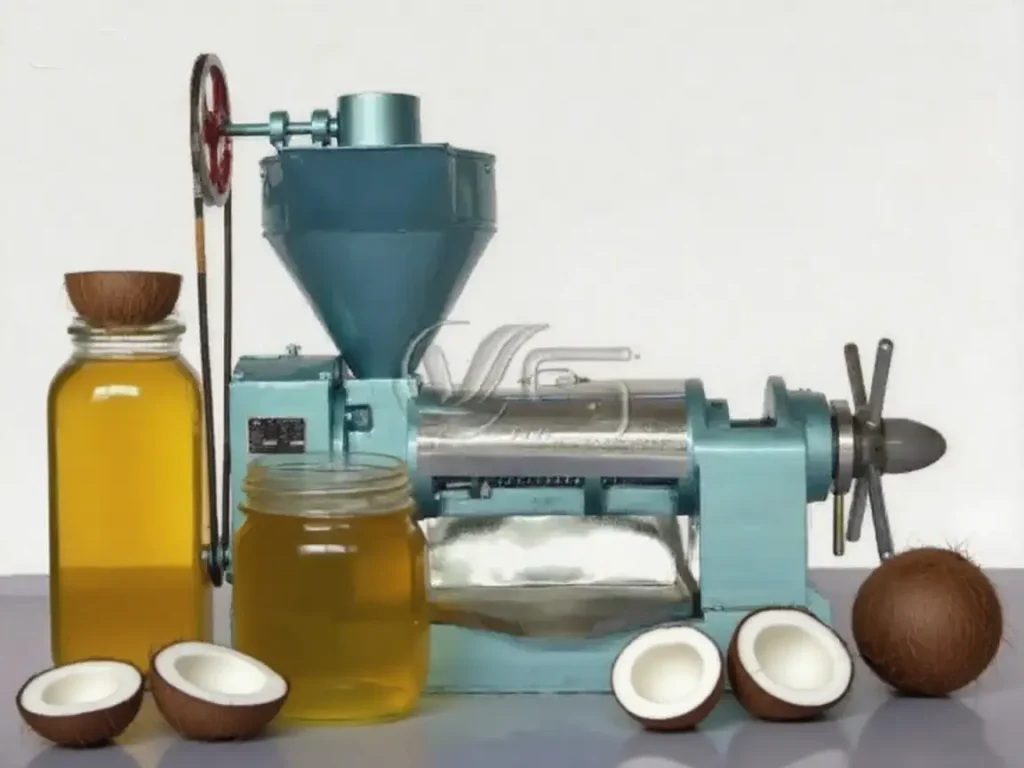

The Vos coconut oil press machine is a highly efficient screw press designed to extract oil from coconut meat (copra)
Coconut Oil Production Line for High-Quality Edible Oil Processing
The Vos coconut oil press machine is a highly efficient screw press designed to extract oil from coconut meat (copra). Known for its durability and high oil yield, this machine is perfect for small to medium-scale oil production operations. Whether you're producing virgin coconut oil or refined coconut oil, Vos' advanced technology ensures a smooth and consistent operation with minimal maintenance.
Built to withstand the challenges of coconut pressing, such as the high fiber content and hardness of the coconut meat, the Vos coconut oil press is ideal for use in tropical regions where coconuts are abundant. It ensures reliable performance in both small-scale farms and larger commercial mills.
Get a Free Quote and Details !
Technical Parameters of Coconut Oil Press Machine
| Model | Small Model |
|---|---|
| Recommended Application | Small-scale production, local use |
| Processing Capacity | 100 kg/h |
| Electric Motor | 3 kW |
| Shaft Speed | 25 – 40 r/min |
| Machine Weight | 180 kg |
| Installation Size / Volume | 1200 × 700 × 180 mm |
Vos coconut oil presses can be customized to meet specific production requirements, including adding diesel engines or frequency converters for optimized energy efficiency.
Get a Free Quote and Details !
Quality of Crude Coconut Oil Produced
| Parameter | Typical Value | Description |
|---|---|---|
| Free Fatty Acid (FFA) | ≤ 1.5% | Indicates low acidity and good oil quality |
| Moisture and Impurities (M&I) | ≤ 0.2% | Ensures purity and longer shelf life |
| Iodine Value (IV) | 8 – 12 | Represents the degree of unsaturation, essential for oil quality |
| Smoke Point | 175 – 200°C | Suitable for various cooking and frying methods |
Cold-pressed coconut oil retains more of its natural flavor and nutrients, while hot-pressed oil yields more product with a longer shelf life.
How It Works – Coconut Oil Extraction Process
The coconut oil press machine uses a screw press mechanism to extract oil from dried coconut meat (copra). Here's a typical extraction process:
Pre-treatment: Coconuts are cracked open, and the meat is separated from the shell. The copra (dried coconut meat) is then cleaned and prepared for pressing.
Feeding: The copra is fed into the hopper of the press, where it moves toward the pressing chamber.
Pressing: Inside the chamber, the rotating screw applies continuous pressure to the copra, squeezing out the oil.
Oil separation: The extracted oil flows through narrow filtration gaps, while the remaining dry cake is expelled from the machine.
Filtration (optional): The crude oil can be further filtered to remove impurities, providing higher quality coconut oil.
Cold pressing is often used for virgin coconut oil to retain its natural aroma and nutrients, while hot pressing is typically used for refined coconut oil to achieve higher oil yield.
Get a Free Quote and Details !
Applications in Global Coconut Oil Production
Vos coconut oil press machines are widely used in coconut-producing regions such as the Philippines, Indonesia, India, and Sri Lanka. From small family-owned farms to large-scale industrial operations, customers appreciate the press for its ease of use and low maintenance requirements. The Vos machine ensures consistent and reliable oil extraction, making it ideal for both virgin and refined coconut oil production.
When paired with a copra dryer and oil filtration system, the press creates a complete coconut oil production line capable of producing high-quality coconut oil for both local and international markets.
