Coconut Oil Production Line
- Capacity: 10-50TPD
- Raw material: Coconut
Introduction
Integrated equipment for virgin and refined coconut oil production. Cold press and hot press options available.
Coconut Oil Production Line for High-Quality Edible Oil Processing
The coconut oil production line is a highly efficient, integrated system that transforms raw coconuts into premium-quality oil. At VOS Machinery, we specialize in providing fully customized coconut oil production lines designed for both small-scale and large-scale operations. Our production lines feature cutting-edge technology for coconut processing, including shelling, pressing, oil extraction, and refining, all engineered to deliver high efficiency, reduce energy consumption, and ensure reliable performance.
VOS Machinery provides a complete, turnkey solution for coconut oil processing equipment, allowing businesses to optimize their production workflows, maximize oil yield, and achieve long-term sustainable growth with innovative, energy-efficient systems. With our expertise, companies can enjoy a streamlined production process and maintain consistent, high-quality coconut oil output.
Turnkey coconut Oil Processing Plant Technical Parameters
| Item | 10 t/d | 20 t/d | 50 t/d | 100 t/d | 300 t/d |
|---|---|---|---|---|---|
| Oil Extraction Rate | 35–45% | 35–45% | 35–45% | 35–45% | 35–45% |
| Total Installed Power | 70–100 kW | 120–160 kW | 200–250 kW | 300–400 kW | 500–600 kW |
| Land Area Required | 600–800 m² | 1000–1200 m² | 1500–2000 m² | 2500–3000 m² | 5000–6000 m² |
| Automation Level | Semi-Automatic | Semi-Automatic | Fully Automatic | Fully Automatic | Fully Automatic |
Get a Free Quote and Details !
Coconut Oil Production Process – Step by Step
1. Coconut Preprocessing
Fresh coconuts undergo thorough cleaning to remove dirt, stones, and other impurities. Depending on the production method, the coconuts are either de-husked manually or mechanically before moving to the next stage. Our de-husking and deshelling machines ensure quick and efficient preparation of raw materials.
2. Copra Drying (Optional)
For copra-based oil extraction, the coconut meat is dried using solar dryers, mechanical dryers, or hot air dryers. Drying reduces moisture content, improving oil yield and extending storage life.
3. Crushing and Pressing
The dried or fresh coconut meat is crushed and fed into mechanical oil presses.
Cold pressing is used to produce virgin coconut oil, preserving natural aroma and nutrients.
Hot pressing is used for higher yield in standard coconut oil production.
Our advanced screw presses and expellers are designed for high extraction efficiency while maintaining oil quality.
4. Crude Oil Filtration
After pressing, the crude coconut oil contains small solids and moisture. We provide vacuum filters, leaf filters, and centrifugal separators to purify the oil before refining.

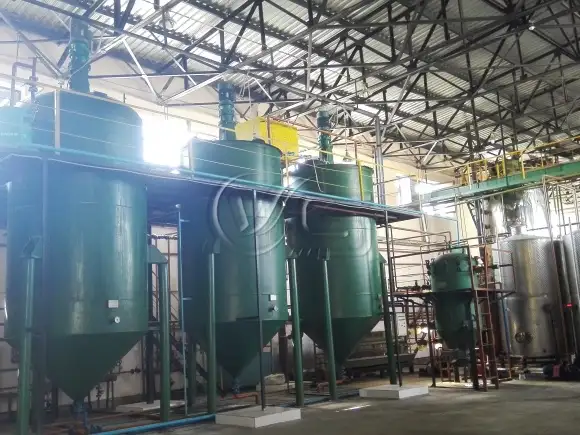

5. Coconut Oil Refining
To meet international quality standards, the crude oil undergoes refining. Our refining process includes:
Degumming and Neutralization: Removal of gums and free fatty acids
Bleaching: Removal of pigments and contaminants
Deodorization: Elimination of odors and flavors
VOS Machinery supplies batch-type refining units for small and medium production and continuous refining systems for industrial-scale operations.
6. Packaging and Storage
Refined coconut oil is stored in food-grade stainless steel tanks and packaged according to customer requirements—whether in bottles, pouches, drums, or bulk containers.
Get a Free Quote and Details !
Applications and Market Opportunities
Coconut oil is widely used in cooking, cosmetics, pharmaceuticals, and health supplements. With increasing consumer awareness of its health benefits, the global market for coconut oil continues to grow. Investing in a modern, efficient coconut oil production line allows you to capitalize on these expanding opportunities.
VOS Machinery is committed to helping entrepreneurs and businesses succeed by offering technology-driven, high-quality solutions for coconut oil production.
Partner with VOS Machinery for Your Coconut Oil Project
At VOS Machinery, we transform ideas into reality through superior engineering, advanced manufacturing, and dedicated service. Whether you are entering the coconut oil business or expanding your current operations, our turnkey coconut oil production line deliver reliability, efficiency, and profitability.
