Cottonseed Oil Press Machine for Efficient Cotton Seed Oil Extraction

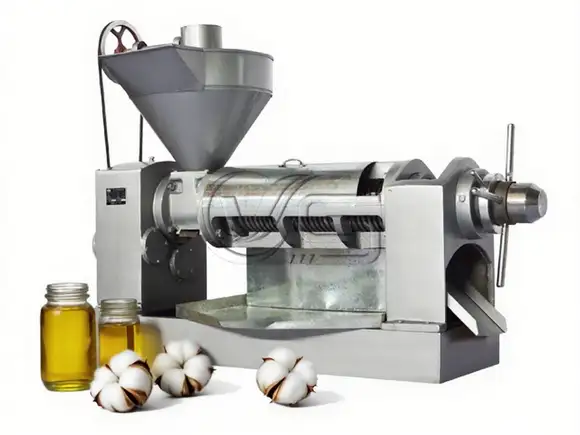

The Vos cottonseed oil press machine is a specialized screw-type expeller designed for extracting oil from cottonseed kernels. Due to the dense structure and high oil content of cottonseed, this machine is reinforced with wear-resistant pressing parts and optimized shaft compression angles to maximize oil output and extend machine lifespan. It is ideal for both standalone use and integration into cottonseed oil production lines.

Whether you are a small processor or a commercial-scale oil mill, Vos offers reliable models that ensure continuous operation, high oil recovery, and minimal residual oil in cake.

Get a Free Quote and Details !

Technical Parameters of Cottonseed Oil Press Machine

Specification	Small Model	Large Model
Recommended Application	Small-scale production, farm use	Medium to large-scale oil mills
Processing Capacity	100 – 300 kg/h	500 kg/h, 1 t/h, up to 2 t/h
Electric Motor	3 – 5.5 kW	7.5 – 22 kW
Shaft Speed	30 – 40 r/min	20 – 12 r/min
Machine Weight	200 – 400 kg	500 – 1800 kg
Installation Size	1200 × 750 × 1800 mm	2 – 8 m³

Quality of Crude Cottonseed Oil

Indicator	Typical Value	Significance
Free Fatty Acid (FFA)	≤ 1.5%	Indicates freshness and low oxidation level
Moisture and Impurity	≤ 0.3%	Ensures clarity and improves refining efficiency
Color	Light yellow to brown	Affected by kernel type and processing temperature
Phospholipid Content	1.5 – 2.5%	Requires degumming in refining for improved stability

Get a Free Quote and Details !

Working Principle – Single Screw Press Operation

Cottonseeds are first dehulled and cleaned to remove impurities. After appropriate moisture conditioning, they are fed into the oil press hopper. Inside the press chamber:

1、A rotating screw shaft compresses the cottonseed gradually.

2、Oil is extracted through small slotted holes in the press cage.

3、The resulting crude oil is collected, while the pressed cottonseed cake is discharged at the end.

4、Optionally, a filter can be used to purify the oil before storage or refining.

This method provides a mechanical, solvent-free oil extraction solution suitable for various scales of production.
