Coconut Oil Production Line for High-Quality Edible Oil Processing

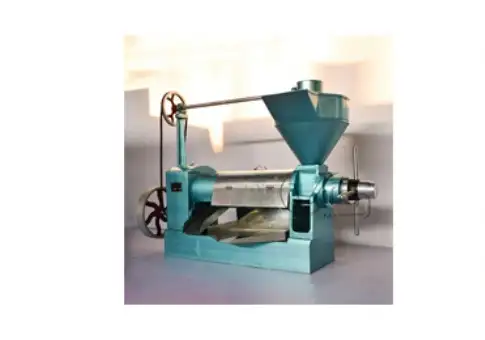

The Vos peanut oil press machine is a precision-engineered screw press designed to extract high-purity oil from shelled peanuts (groundnuts). Featuring a compact structure, easy operation, and high oil output, this machine is suitable for both cold press and hot press processes. It is widely used in small and medium-sized edible oil production facilities and rural oil workshops around the world.

Thanks to its heavy-duty pressing screw and optimized chamber design, the Vos peanut oil press ensures thorough extraction with minimal oil residue in the cake. Whether operating as a standalone press or paired with a roaster and oil filter, it delivers reliable, energy-efficient performance.

Get a Free Quote and Details !

How It Works – Peanut Oil Pressing Process

Vos peanut oil press machines follow a direct mechanical pressing method using a screw shaft to gradually apply pressure on the oilseeds. Here's a typical hot pressing process:

Pre-treatment: Peanuts are cleaned and roasted to remove moisture and improve oil yield.

Feeding: Roasted peanuts are evenly fed into the hopper.

Pressing: Inside the chamber, the rotating screw gradually compresses the material while pushing it toward the outlet.

Oil separation: Oil is expelled through narrow gaps in the barrel, while the pressed cake exits through the discharge end.

Filtration (optional): Crude oil can be filtered to remove impurities.

For cold pressing, raw peanuts are directly pressed at lower temperatures, preserving more nutrients and flavor in the oil, though with a slightly lower yield.

Get a Free Quote and Details !

Technical Parameters of Peanut Oil Press Machine

Specification	Small Model	Large Model
Recommended Application	Small-scale production, local use	Medium to large-scale industrial use
Processing Capacity	50-100 kg/h	500 kg/h, 1 t/h
Electric Motor	3 kW	5 – 15 kW
Shaft Speed	25 – 40 r/min	20 – 12 r/min
Machine Weight	180 kg	400 – 1500 kg
Installation Size / Volume	1200 × 700 × 180 mm	2 – 6 m³

Vos machines can be customized with diesel engines, frequency inverters, or different barrel configurations depending on customer needs.

Quality of Crude Peanut Oil Produced

Parameter	Typical Value	Description
Free Fatty Acid (FFA)	≤ 1.5%	Indicates low acidity and good oil stability
Moisture and Impurities (M&I)	≤ 0.2%	Ensures purity and longer shelf life
Iodine Value (IV)	85 – 100	Reflects high unsaturation and nutritional quality
Smoke Point	220°C	Suitable for cooking and frying applications

Get a Free Quote and Details !

Applications in Global Peanut Oil Production

Vos peanut oil press machines are popular among edible oil producers in Nigeria, India, Sudan, and South America. Their rugged design and user-friendly operation make them well-suited to farm cooperatives, village oil plants, and mobile oil processing units.

Paired with a roaster and filtration system, the press becomes a compact oil production line capable of delivering clean, high-quality peanut oil for local consumption or commercial bottling.
